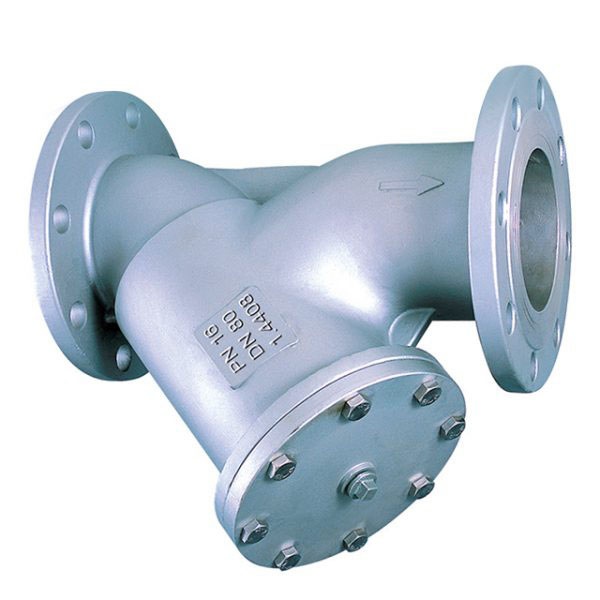

Y Strainer
Y strainers are designed to filter debris from steam, gas, and liquid systems, protecting downstream equipment in industrial piping applications.
With a compact design and optional blow-off valve for easy cleaning, Y strainers are versatile for horizontal or vertical installations, ideal for oil and gas, chemical, and water treatment industries.
Y strainers, named for their Y-shaped configuration, use a perforated or mesh screen to trap debris in steam, gas, or liquid flow, safeguarding pumps, valves, and other equipment. They offer less debris-holding capacity than basket strainers but are suitable for both horizontal and vertical (downward flow) installations. Equipped with an optional blow-off valve, Y strainers allow cleaning without halting flow or disassembling the unit, as the flow flushes out trapped solids. Their robust construction ensures reliability in demanding conditions.
Y strainers are manufactured to meet industry standards, ensuring performance and compatibility in various systems.
| Type/Standard | Material | Application |
|---|---|---|
| Cast Y Strainer: ASME B16.34 | Carbon Steel (A216 WCB), Stainless Steel (CF8M) | Oil and gas, chemical processing |
| Forged Y Strainer: ASME B16.34 | Carbon Steel (A105), Stainless Steel (F316), Inconel | High-pressure steam and gas systems |
Y strainers are essential in industries requiring reliable filtration:
| Properties | Values & Limits |
|---|---|
| Material | Carbon Steel (A216 WCB, A105), Stainless Steel (CF8M, F316), Inconel |
| Design Standards | ASME B16.34 |
| Connection | Flanged, Threaded, Socket Weld, Butt Weld |
| Size Range | 1/2" to 24" |
| Pressure Rating | Up to ANSI Class 1500 lbs |
| Screen Material | Stainless Steel (304, 316), Monel |
| Testing Standards | API 598 |
| Flange Details | ASME B16.5 |
